Portable Laser Parallel Roll Alignment Tool/Laser Parallel Roll Alignment Systems

1 / 3

Portable Laser Parallel Roll Alignment Tool/Laser Parallel Roll Alignment Systems

Customization:	Available
After-sales Service:	7*24 Hours
Warranty:	1 Year

Send Inquiry

Product Description

🌐 Product Overview

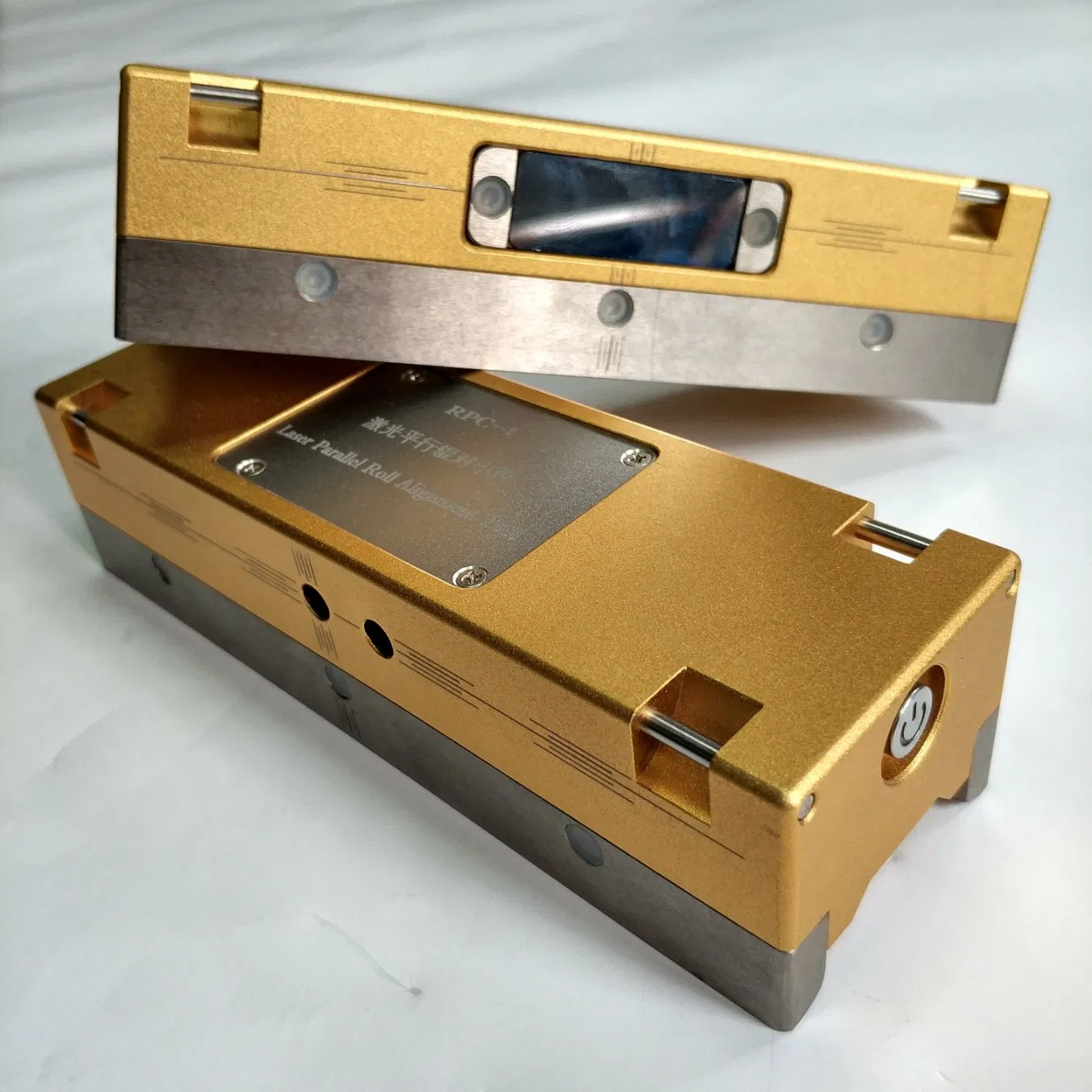

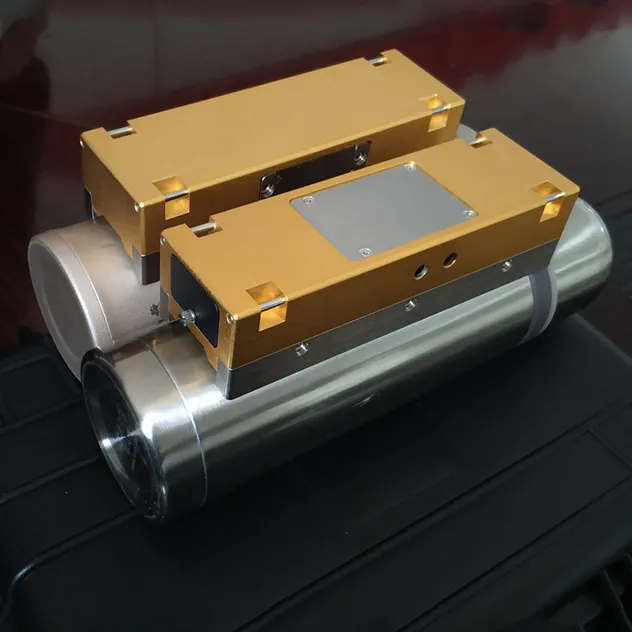

Portable Laser Parallel Roll Alignment Tool

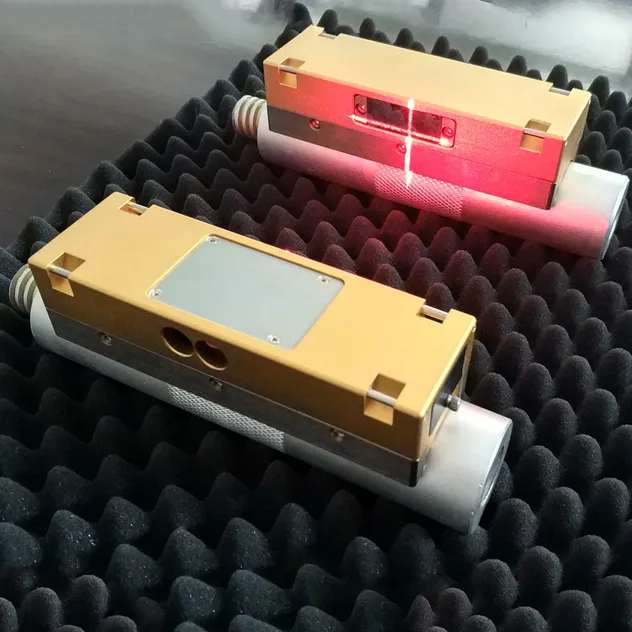

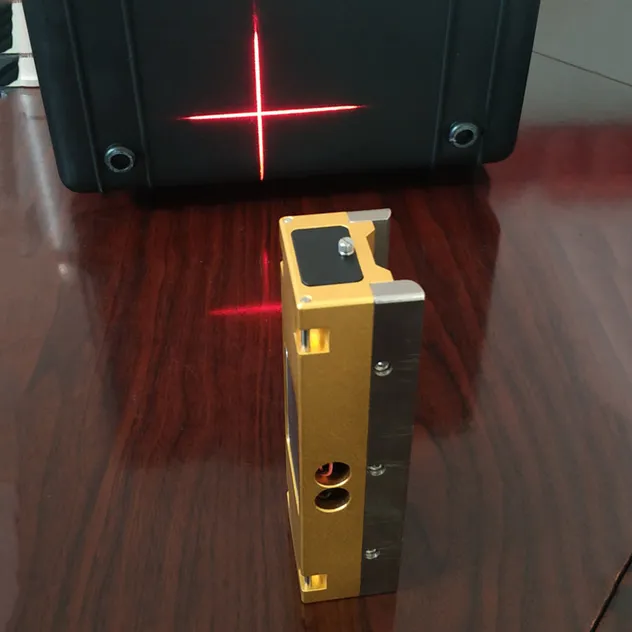

This precision tool is engineered to measure and correct vertical and horizontal angles between two rolls. By mounting the Laser Transmitter to a stationary roll, it transmits two red laser lines to a Reflector positioned on the target roll. Operators can easily visualize alignment deviations and make accurate adjustments to ensure perfect parallel alignment.

Basic Information

Model NO.

RPC-1

Laser Power

2 MW

Wavelength

650 Nm

Accuracy

0.1mm/M

Working Time

10 Hours

Material

Aluminium Alloy

Operating Temp

-10-40ºC

Applicable Diameters

>50mm

📊 Technical Specifications

Key Features

Minimize downtime and extend the operational life of equipment.
High-precision measurements for superior alignment results.
Intuitive one-person operation requiring no specialized training.
Innovative structural design with self-locking buckle devices.

Product Gallery

Detailed Technical Data

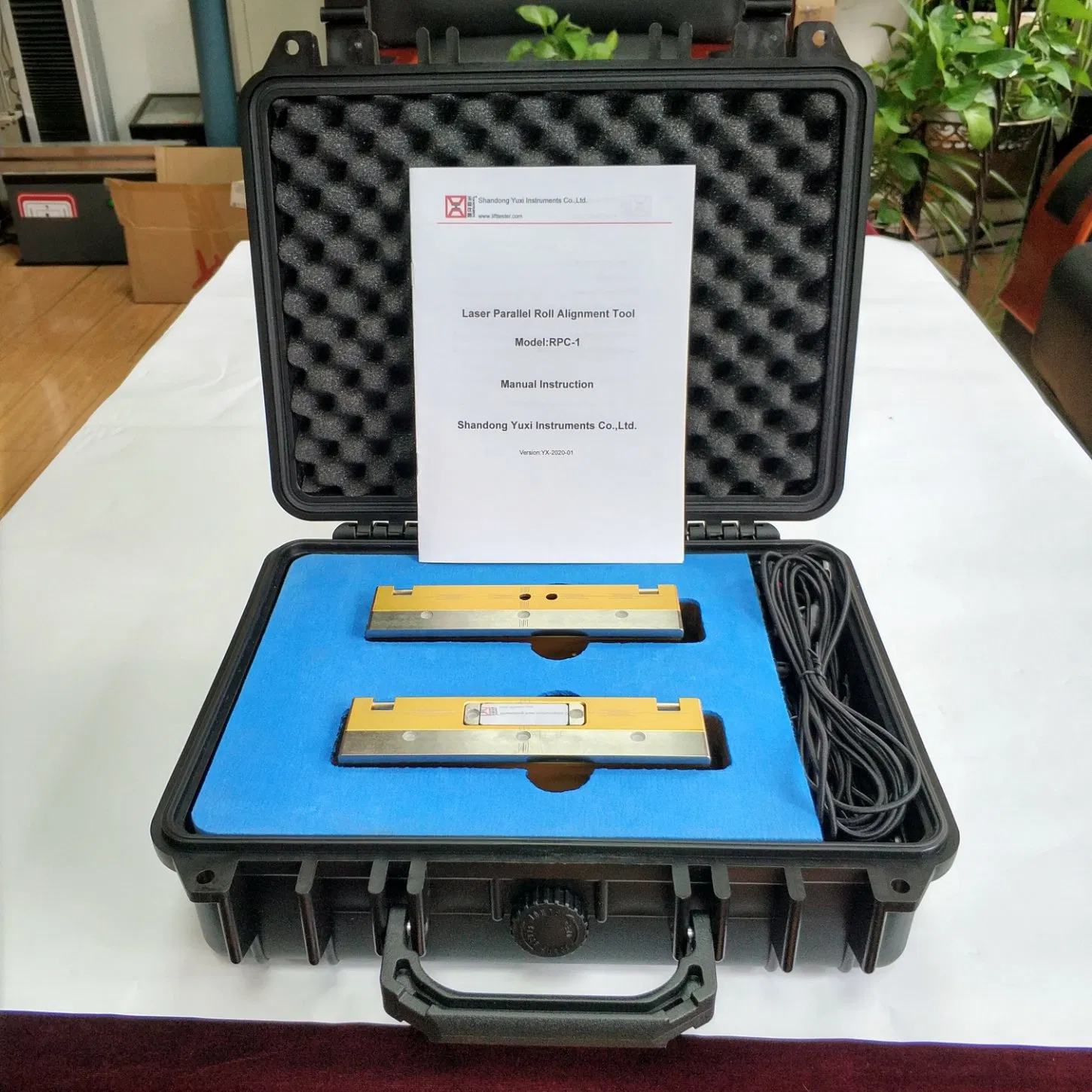

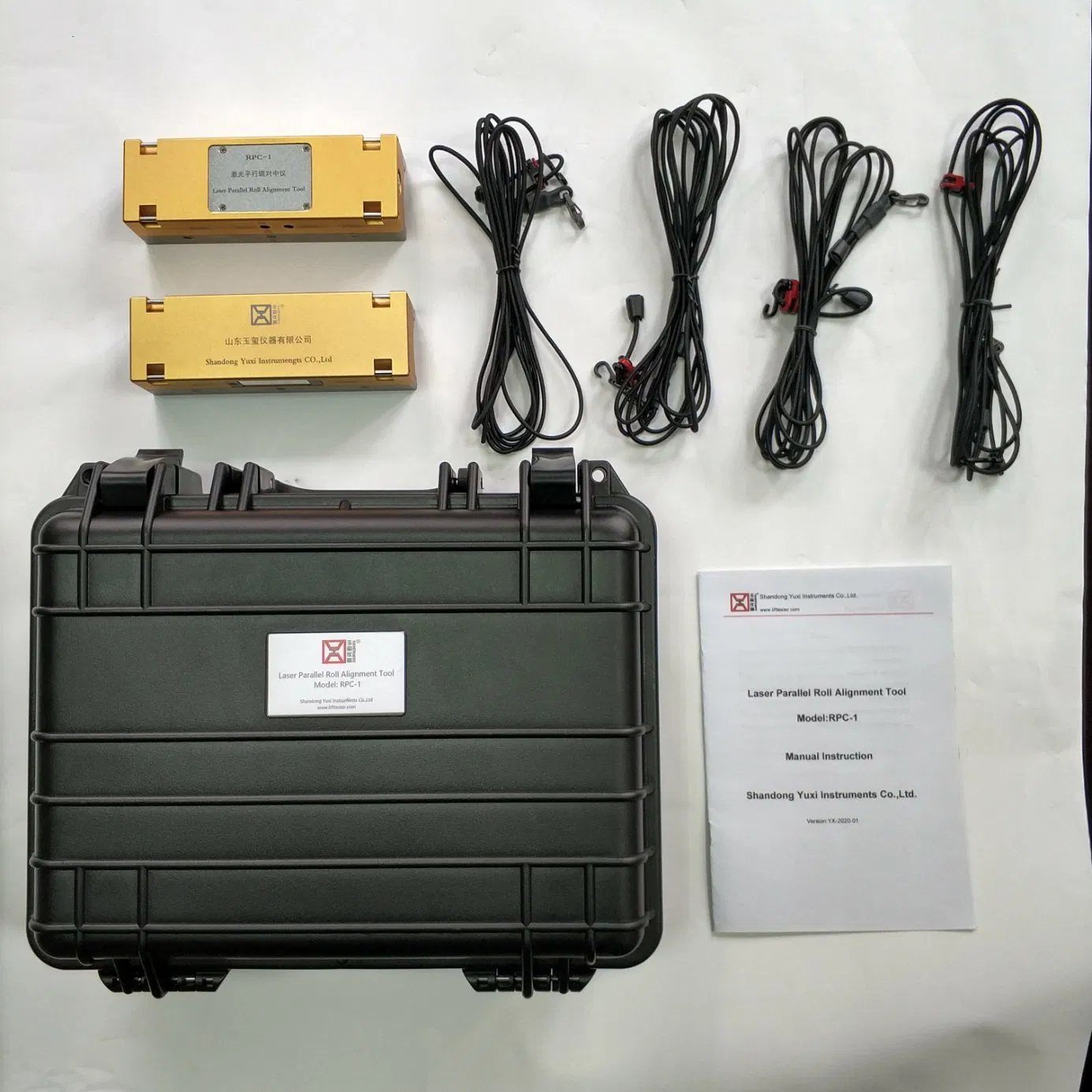

Transmitter Details		Reflector & Case Details
Laser power	2 mW	Reflector Weight	920g
Wavelength	650 nm	Reflector Dim.	1605040 mm
Accuracy	0.1mm/m	Mounting Type	Bungee straps
Laser Angle	30°	Case Material	High density polyethylene
Line Thickness	1mm at 2 m	Case Weight	1.5Kg
Battery Type	Two AA batteries	Total Weight	3.3Kg

🛠️ After-Sales Service

Comprehensive English operation manuals provided for easy setup.
One-year standard warranty covering non-man-made faults.
Professional technical training services.
24/7 technical support available via multiple digital channels.

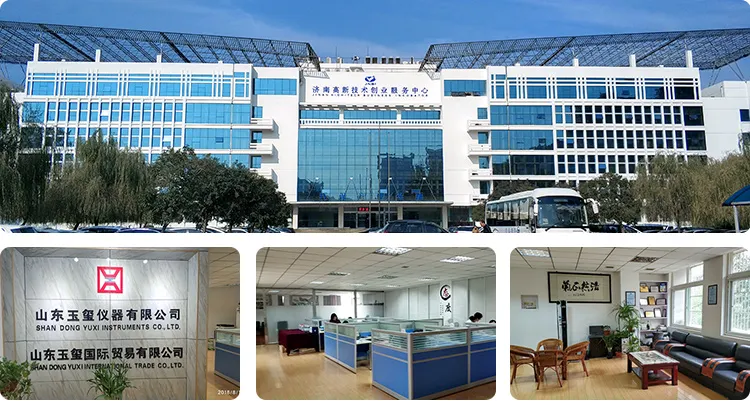

🏭 Manufacturing Capabilities

Our facility is equipped with world-class production infrastructure and internationalized workshops. With over 19 years of expertise in instrument manufacturing, we are ISO 9001 certified and serve clients in over 50 countries. We prioritize R&D innovation and maintain rigorous quality control to ensure precise and reliable equipment performance.

Related Testing Solutions

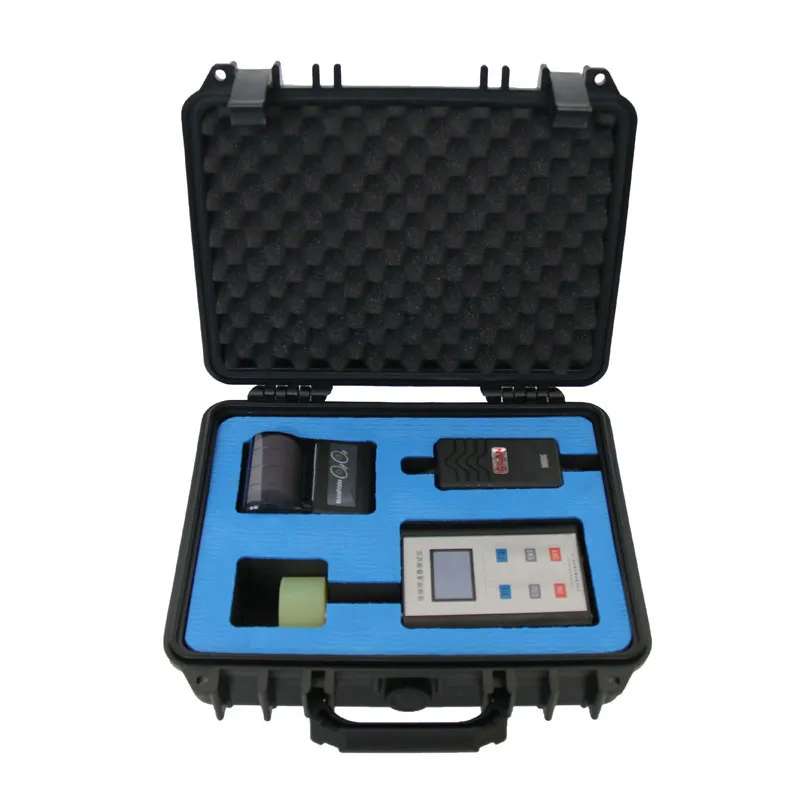

Lift Overspeed Governor Tester

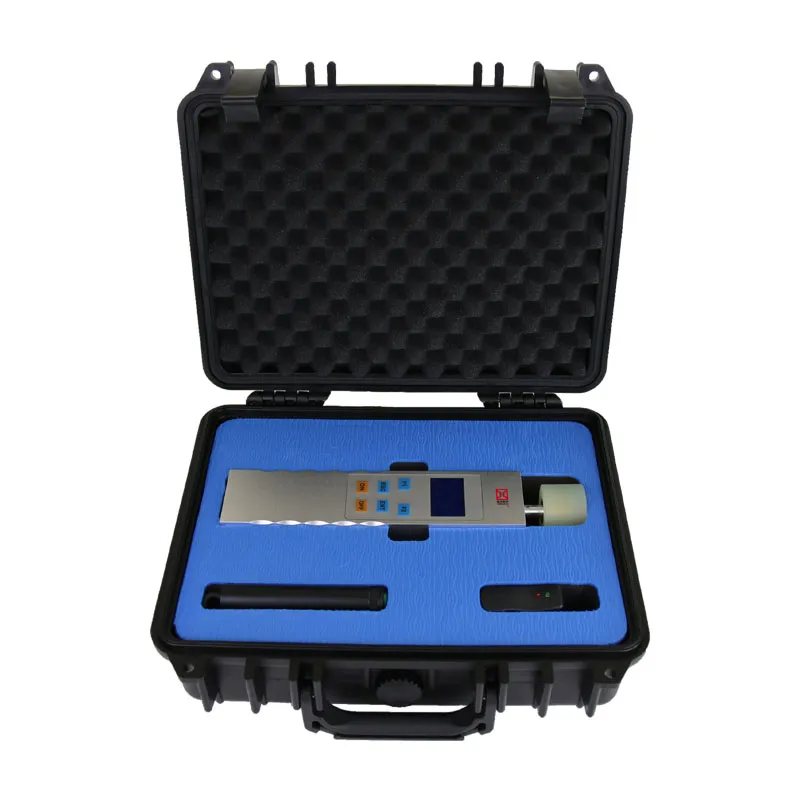

Escalators Performance Tester

📜 Quality Certifications

❓ Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a specialized manufacturer with our own R&D team, software copyrights, and ISO 9001 quality management system certification.

2. What are the standard payment terms? We accept T/T, L/C at sight, and credit cards. Other payment methods are negotiable based on order requirements.

3. What is the typical lead time for delivery? Portable tools take 4-10 days, regular testing machines take 10-20 days, and customized equipment requires 15-40 working days.

4. How long is the warranty period for this tool? The product comes with a comprehensive one-year warranty.

5. Can the tool be used on different roll diameters? Yes, the tool is compatible with roll diameters greater than 50mm, making it versatile for various industrial applications.

6. Is special training required to operate the laser system? No, the device is designed for one-person operation with a user-friendly interface and does not require complex training.
