| Item | Specification | Unit | Quantity |
|---|---|---|---|

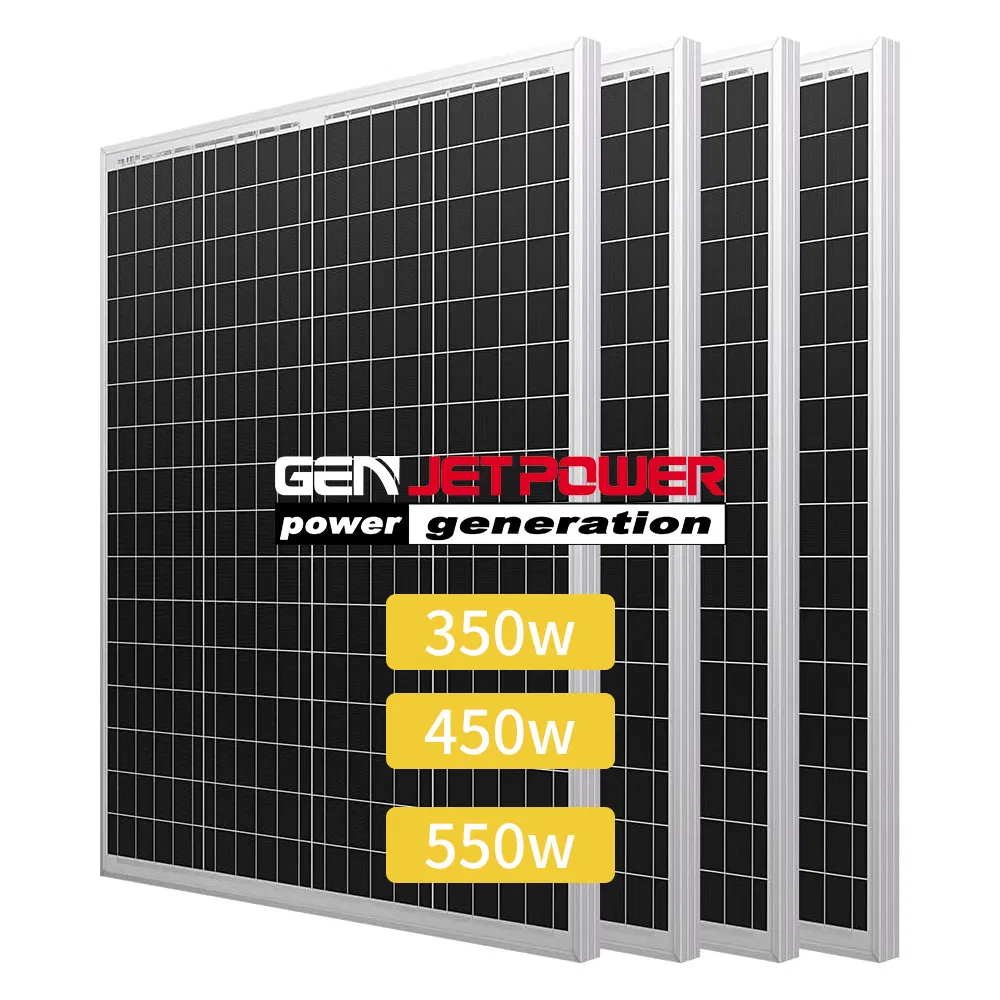

| Solar panel | 550W Mono Solar panel Size: 2279x1134x35mm, 28.6kg VMPP: 41.96V, VOC: 49.9V, IMPP: 13.11A 25 years lifetime (CE TUV) IP65 with MC4 connector |
pc | 6 |
| MPPT & Inverter System | 3500W Pure Sine Wave Inverter Off-grid MPPT Controller included Output: 220V-230V/50HZ Size: 383X333X104mm |
set | 1 |
| PV Combiner Box | 8 input & 1 output Anti-thunder & Waterproof Short-circuit protection Size: 500*400*190mm |
set | 1 |
| Solar Wire | 4mm2 PV cable 100M Terminals and MC4 for 10pcs |
set | 1 |
| Lightening Rod | Standard Lightening rod | pc | 1 |
| Install Accessory | Hot-dip galvanized solar photovoltaic bracket 41*41 Fasteners, Holder block, Expansion screws |
set | 1 |

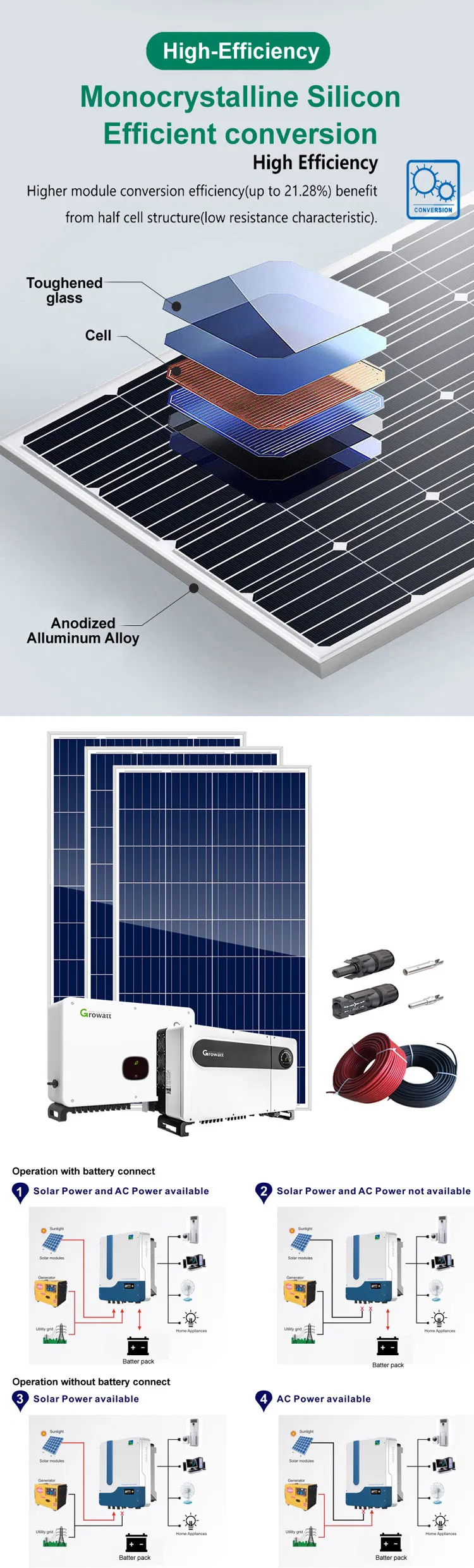

A: The system includes 550W Mono Solar panels with a high efficiency design, featuring a 25-year lifetime.
A: Yes, the kit comes with both a PV combiner box that features anti-thunder protection and a dedicated lightning rod for safety.
A: The system uses a 3500W Pure Sine Wave off-grid inverter system with an integrated MPPT controller for maximum efficiency.

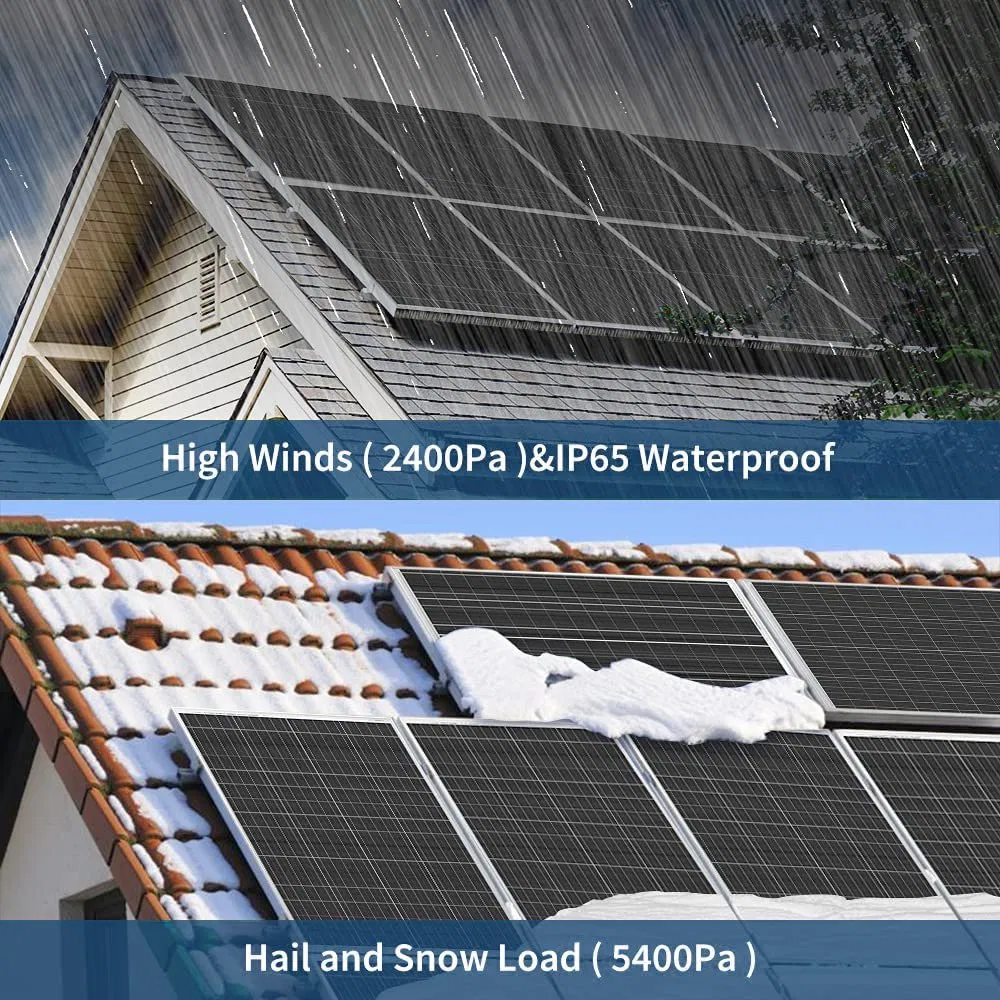

A: Yes, the PV combiner box is waterproof, and the solar panel connectors are IP65 rated, making them suitable for various weather conditions.
A: After the one-year guarantee, we continue to provide maintenance support and spare parts at cost to ensure your system continues to operate smoothly.
A: The inverter system supports an optional WiFi function for remote monitoring of your energy production and usage.
